Graphify — Turn Any Codebase into a Knowledge Graph

The Problem: Raw Data Doesn't Scale

Andrej Karpathy recently described his workflow for building personal knowledge bases with LLMs: drop papers, tweets, screenshots, and notes into a /rawfolder, then use an LLM to “compile” a wiki of interlinked markdown files. The LLM writes and maintains the wiki. You query it, file the answers back, and the knowledge base compounds over time.

It's a powerful idea, but it's held together by scripts. There's no structural understanding of what connects to what, no confidence scores on inferred relationships, and no way to ask “what path connects concept A to concept B?” without the LLM re-reading everything.

graphify is an open-source tool that takes this idea and gives it structure. Instead of a flat wiki, it builds a knowledge graph— with typed nodes, weighted edges, community detection, and confidence scoring — from any mix of code, docs, papers, and images.

How It Works: Two-Pass Extraction

graphify runs in two passes over your corpus:

The merged graph is then clustered using Leiden community detection — a graph-topology algorithm that finds communities by edge density. No embeddings, no vector database. The graph structure is the similarity signal.

What You Get

graphify-out/
├── graph.html       # interactive graph — click, search, filter by community
├── GRAPH_REPORT.md  # god nodes, surprising connections, suggested questions
├── graph.json       # persistent graph — query weeks later without re-reading
└── cache/           # SHA256 cache — re-runs only process changed files

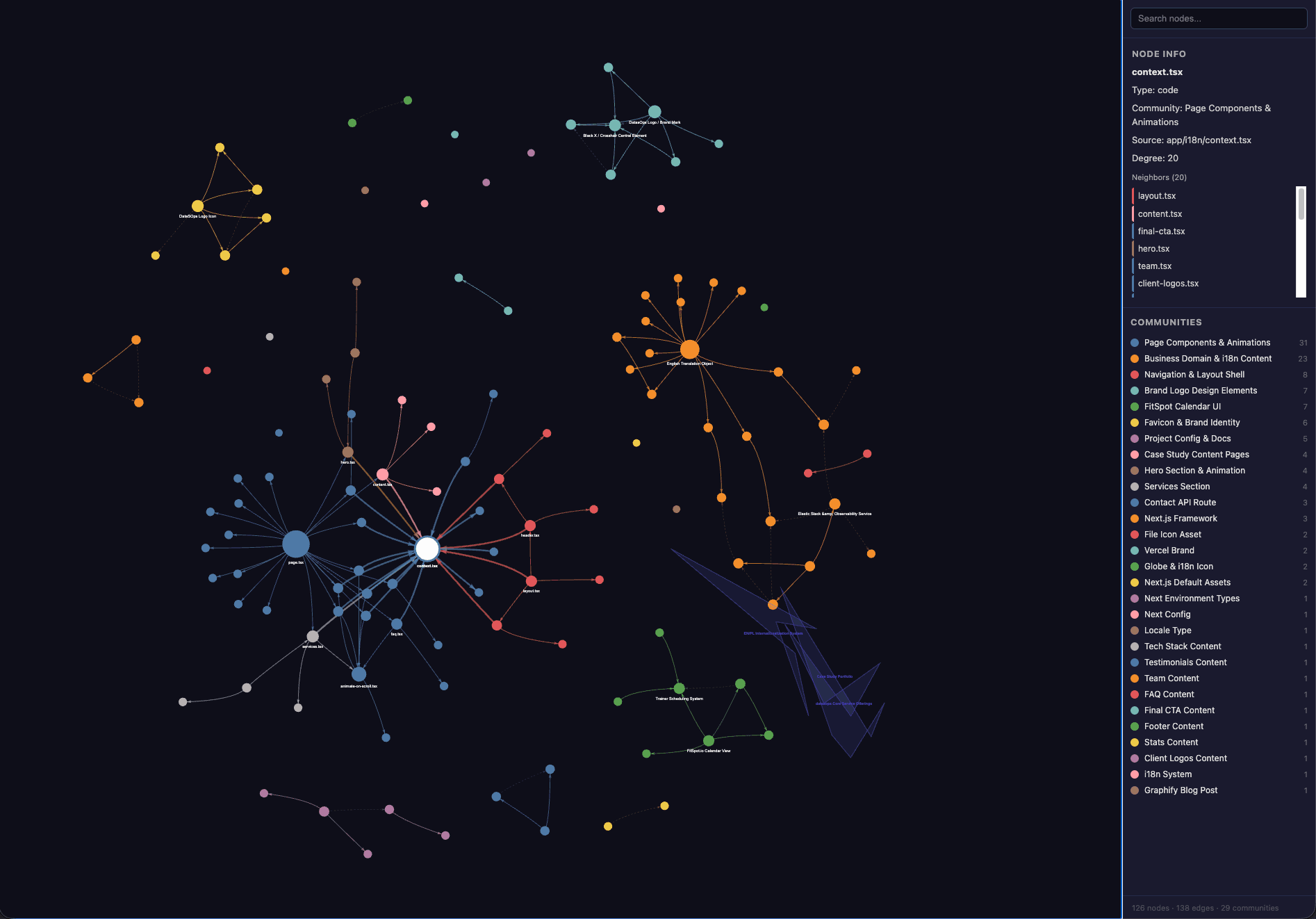

Interactive graph output from graphify — communities are color-coded, node size reflects connectivity

Key Features

Fully Multimodal

Drop in code, PDFs, markdown, screenshots, diagrams, whiteboard photos, images in other languages — graphify uses Claude vision to extract concepts from all of it and connects them into one graph. This is what makes it a true knowledge compiler, not just a code indexer.

71.5x Token Reduction

On a mixed corpus (Karpathy repos + papers + images, 52 files), querying the graph uses 71.5x fewer tokensthan reading raw files. The first run extracts and builds the graph (this costs tokens). Every subsequent query reads the compact graph — that's where the savings compound. Token reduction scales with corpus size.

Always-On Assistant Integration

After building a graph, a single command installs a hook that makes your AI assistant read the graph report before answering architecture questions:

graphify claude install   # Claude Code: CLAUDE.md + PreToolUse hook
graphify codex install    # Codex: AGENTS.md
graphify opencode install # OpenCode: AGENTS.md

Think of it this way: the always-on hook gives your assistant a map. The /graphify query commands let it navigate the map precisely:

/graphify query "what connects attention to the optimizer?"
/graphify query "what connects attention to the optimizer?" --dfs   # trace a specific path
/graphify query "what connects attention to the optimizer?" --budget 1500  # cap at N tokens
/graphify path "DigestAuth" "Response"
/graphify explain "SwinTransformer"

Incremental Updates & Auto-Sync

A SHA256 cache means re-runs only process changed files. The --watch flag auto-syncs the graph as your codebase changes (code saves trigger instant rebuild via AST, doc changes notify for LLM re-pass). Git hooks rebuild the graph on every commit and branch switch.

Flexible Export

/graphify ./raw --obsidian    # generate Obsidian vault
/graphify ./raw --wiki        # agent-crawlable wiki
/graphify ./raw --svg         # export graph.svg
/graphify ./raw --graphml     # Gephi, yEd
/graphify ./raw --neo4j       # generate Cypher for Neo4j
/graphify ./raw --neo4j-push bolt://localhost:7687

Benchmark Results

At 6 files the corpus fits in a context window anyway, so graph value is structural clarity, not compression. At 52 files (code + papers + images), you get 71x+ reduction.

Where It Helps

Getting Started

pip install graphifyy && graphify install

Then open your AI coding assistant and type:

/graphify .

The project is open-source and available on GitHub. It runs entirely locally (NetworkX + Leiden + tree-sitter + vis.js), with no Neo4j or server required.
